Naked Sliding NKSL400

Description

The first concealed Nice motor for sliding gates up to 400 kg and with a leaf up to 6m.

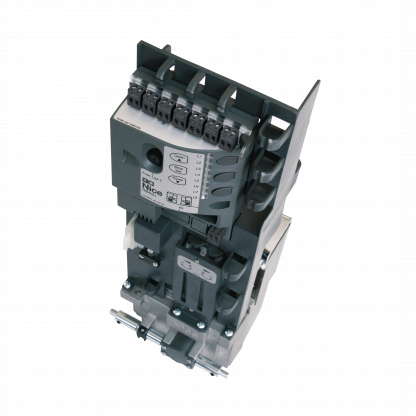

Motor with integrated control unit and absolute encoder, can be installed inside a small, suitably drilled post.

The very small size allows the motor to be housed in even very slim posts, with a minimum internal size of 140×140 mm.

Simple: thanks to the BlueBUS system allowing connections with just two wires between the control unit and up to 7 pairs of photocells and control, safety and signalling devices.

Master/slave selection: also automatically synchronises 2 motors, allowing automation of sliding gates with two opposing leaves.

Smart: thanks to obstacle detection and automatic programming of operating times. Self-diagnostics with indications via the flashing light.

Safe: adjustable acceleration and deceleration at the start and end of each manoeuvre.

Simple and precise limit switch regulation: integrated absolute limit switch, rapid learning in a single movement with motor released.

Practical: control unit and PS124 buffer batteries (optional) connected by practical guided plug-in connector.

Flexible: the release can be provided on both sides of the post and/or outside (with KIO and KA1 accessories). Easy installation even on existing posts.
