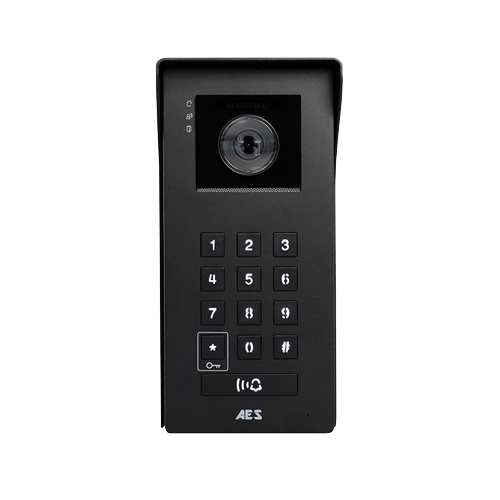

AES Global OPYN IP Video Intercom | Advanced Network Access Control (OPYN-IP-IBK)

Description

The AES OPYN IP Video Intercom represents the pinnacle of smart access technology, delivering ultra-clear 1080p video monitoring and professional-grade security straight to your mobile device. Purpose-built for modern residential homes, gated properties, or commercial estates, this system establishes a rock-solid data connection via a hardwired LAN cable with standard Power over Ethernet (PoE) or wirelessly using an optional high-gain Wi-Fi antenna.

When a visitor presses the call button, the OPYN system streams live video and crisp two-way audio instantly to the Opyn App on your smartphone or an internal touchscreen monitor. No matter where you are in the world, you can visually screen callers, converse in real-time, and trigger entry with total confidence.

Housed in a rugged, hooded Imperial black powder-coated finish with integrated white LED night-vision luminance, the OPYN IP system flawlessly blends top-tier security with a sleek architectural design.

Key Features & Benefits

• High-Definition 1080p Video & Wide Lens: Monitor your entrance with exceptional clarity featuring a wide-angle view (130° Horizontal, 70° Vertical, 150° Diagonal) to ensure no blind spots.

• Flexible Dual-Relay Control: Equipped with 2 independent relays (N/C and N/O) allowing you to trigger, latch, or unlatch two separate entry points (e.g., automated driveway gates and a pedestrian side gate).

• Smart Access Keypad & QR Entry: Features a backlit metal keypad supporting up to 150 customizable access codes. Grant temporary access to visitors or couriers by generating unique QR codes with strict validity periods or use limits.

• Proactive Motion Detection & Alerts: Built-in motion sensors monitor your perimeter 24/7. Receive instantaneous push notifications on your phone and review triggered video events effortlessly.

• Advanced Smart Integration: Seamlessly works with voice assistants like Amazon Alexa and Google Assistant for effortless hands-free gate operations.

• Smart Voicemail Greeting: Program up to 3 custom voicemail recordings. Select your preferred greeting to play automatically to visitors when you are unavailable or off-grid.

• Built-in Tamper Protection: Features a highly responsive internal tamper alarm that instantly transmits alerts if unauthorized interference or vandalism is detected.

Complete Control via the Opyn App

Take command of your property with the intuitive Opyn App. Program up to 150 keypad codes, generate scannable entry QR codes, configure automated gate opening time schedules, download images/videos directly to your device, and review a comprehensive, unlimited activity log.

What’s in the Box?

• (1) AES OPYN IP Hooded Imperial Intercom Panel (with Keypad)

• (1) PoE Splitter/Components Kit

• (1) 24V DC Power Supply (for non-PoE alternative setups)

• (1) 8GB Micro SD Card (Pre-installed, supports up to 128GB)

• (1) Installation Quick Start Guide

Technical Specifications

• Connectivity: Lan/Ethernet (RJ45), 2.4GHz & 5GHz Wi-Fi (Antenna sold separately)

• Power Supply: 48V PoE or 24V DC 2A

• Video Resolution: 1080p / 720p / 640×360 selectable

• Night Vision: High-Luminance White LEDs with Light Sensor

• Relay Load: 3A, 30V DC / 250V AC Max

• Weatherproof Rating: IP54 Robust Outdoor Rating

• Operating Temperature: -20°C to +55°C

• Dimensions: 195mm x 98mm x 53mm (H x W x D)

Technical Attributes

• Brand: AES Global

• Model: OPYN-IP-IBK (OPYN IP Series)

• Connection Type: IP / LAN / PoE (Wi-Fi optional via separate antenna)

• Video Quality: 1080p Full HD Video

• Material: Heavy-Duty Black Powder-Coated Steel (Imperial Hooded)

• Number of Buttons: 1 (Single Call Button)

• Access Control: Backlit Metal Keypad & Smart QR Code Scanning

• Keypad Code Capacity: 150 Custom Codes

• Relays: 2 (Dual Relay control)

• Power Requirement: 48V PoE or 24V DC (Power supply included)

• Storage: Local Micro SD Card up to 128GB (8GB Card Included)

• Smart Home Links: Amazon Alexa / Google Assistant
