AES Global OPYN 4G Video Intercom | Advanced Cellular Access Control (OPYN-4G-IBK)

Description

The AES OPYN 4G Video Intercom (OPYN-4G-IBK) represents the absolute cutting edge of smart access control, delivering ultra-clear 1080p video streaming directly to your smartphone via mobile networks. Purpose-built for environments where a reliable local Wi-Fi or hardwired network connection isn’t available—such as remote gates, sprawling estates, or commercial perimeters—this cellular-powered system uses a 4G SIM card to keep you connected anytime, anywhere.

When a visitor presses the call button, the intercom instantly transmits live HD video and crisp two-way audio to the Opyn App on your phone. From anywhere in the world, you can visually screen visitors, converse in real time, and securely open your gate.

Featuring a modern, hooded Imperial black powder-coated casing with integrated white LED illumination, the OPYN 4G effortlessly blends absolute wireless freedom with top-tier security.

Key Features & Benefits

• 4G Cellular Independence: Runs entirely via mobile network technology, bypassing the need for long internet cable runs or local Wi-Fi.

• High-Definition 1080p Video Lens: Monitor your entrance with exceptional clarity featuring an ultra-wide viewing angle (130° Horizontal, 70° Vertical, 150° Diagonal) to eliminate blind spots.

• Smart Keypad & Unique QR Access: Features a backlit metal keypad supporting up to 150 custom access codes. For ultimate convenience, use the app to generate unique entry QR codes that visitors or couriers can simply scan directly at the intercom’s camera—complete with customizable use limits or expiry times.

• Flexible Dual-Relay Control: Onboard 2-relay system allows you to trigger, latch, or unlatch two separate entry points (such as an automated driveway gate and a pedestrian side door) via the app.

• Proactive Motion Detection & Alerts: Built-in motion sensors monitor your perimeter 24/7. Receive instant smartphone push notifications and play back recorded activity directly on the app.

• Smart Voicemail Option: Customize up to 3 separate voicemail messages. Program your preferred recording to play automatically to visitors if you are unavailable or offline.

• Voice Assistant Integration: Fully compatible with Amazon Alexa and Google Assistant for effortless, hands-free voice control over your gate entries.

Comprehensive Control via the Opyn App

Take absolute command of your property. The intuitive Opyn App allows you to seamlessly manage up to 150 keypad codes, issue entry QR codes, configure automated gate-opening time schedules, download images/videos directly to your mobile device, and monitor a detailed, unlimited activity log.

What’s in the Box?

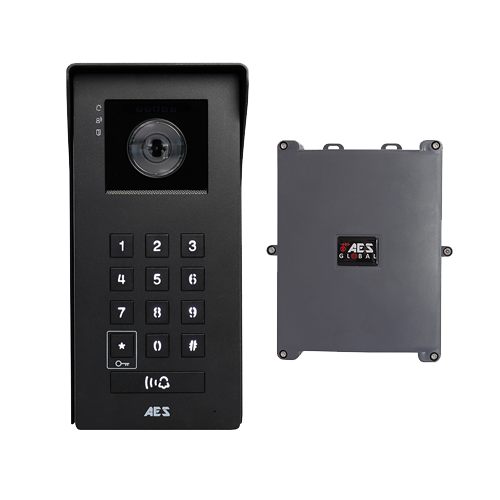

• (1) AES OPYN 4G Hooded Imperial Intercom Panel (with Keypad)

• (1) High-Gain 4G External Modem/Antenna

• (1) 24V DC Power Supply Adaptor

• (1) SIM Card Options Kit (Supports multi-network SIMs)

• (1) 8GB Micro SD Card (Pre-installed, supports up to 128GB)

• (1) Quick Start Installation Guide

Technical Specifications

• Connectivity: 4G LTE Cellular Network (SIM required), LAN/Wi-Fi ready

• Video Resolution: Full HD 1080p / 720p / 640×360 selectable

• Night Vision: High-Luminance White LEDs with Light Sensor

• Relays: 2 Independent Relays (N/C and N/O)

• Relay Load: 3A, 30V DC / 250V AC Max

• Weatherproof Rating: IP54 Outdoor Rated

• Storage: 8GB Micro SD Card included (Expandable to 128GB)

• Operating Temperature: -20°C to +55°C

• Dimensions: 195mm x 98mm x 53mm (H x W x D)

Technical Attributes

• Brand: AES Global

• Model: OPYN-4G-IBK (OPYN 4G Series)

• Connection Type: 4G LTE GSM / Cellular (SIM Card required)

• Video Quality: 1080p Full HD Video

• Material: Heavy-Duty Black Powder-Coated Steel (Imperial Hooded)

• Number of Buttons: 1 (Single Call Button)

• Access Control: Backlit Metal Keypad & Camera QR Code Scanning

• Keypad Code Capacity: 150 Custom Codes

• Relays: 2 (Dual Relay control)

• Power Requirement: 24V DC (Power supply included) / Supports 48V PoE

• Storage: Local Micro SD Card up to 128GB (8GB Card Included)

• Smart Home Links: Amazon Alexa / Google Assistant
