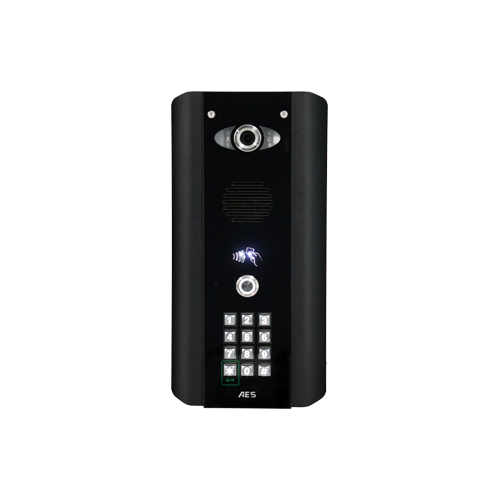

AES Global OPYN-PRO-IP-ABK | Opyn Pro Professional IP Video Intercom with Keypad (Architectural Black)

Description

The AES OPYN-PRO-IP-ABK stands at the cutting edge of professional-grade IP access control. Part of the elite Opyn Pro professional series, this premium network video intercom combines crystal-clear 1080p high-definition video and broadcast-grade two-way audio with an integrated digital access keypad. Engineered for ultimate architectural appeal, it features a sleek, low-profile flush-mount design that integrates beautifully into modern facades, gate posts, or commercial pillars without the need for a bulky, protruding weather hood.

Connecting directly to your network via a single hardwired Local Area Network (LAN) cable using standard Power over Ethernet (PoE), the OPYN-PRO-IP-ABK delivers data and system power down a single cord, completely streamlining installation.

When a visitor presses the call button, the system establishes an instantaneous live audio/video stream to the Opyn App on your smartphone or an internal touchscreen monitor. Residents can securely vet callers and trigger entry from absolutely anywhere in the world, while trusted users can gain instant local entry via secure keypad pin codes.

Key Features & Benefits

• Professional 1080p HD Optics: High-resolution camera lens with an ultra-wide viewing angle (130° Horizontal, 70° Vertical) delivers edge-to-edge clarity and eliminates security blind spots at your entrance.

• Integrated Smart Access Keypad: Features a heavy-duty, backlit metal keypad supporting up to 150 customizable access pin codes for family, staff, or contractors.

• Sleek Flush-Mount Architecture: Designed with a clean, sophisticated, minimal-protrusion profile that blends seamlessly into high-end residential properties or architectural commercial developments.

• True Power over Ethernet (PoE): Operates on standard 48V PoE (802.3af), simplifying installation by drawing both high-speed network communication data and system power down a single Cat5e/Cat6 cable.

• Timed Smart QR Entry: Use the app to generate unique entry QR codes for delivery drivers, couriers, or temporary visitors that can be scanned directly at the camera interface—complete with custom use limits or strict expiry times.

• Multi-Relay Access Management: Onboard dual-relay configuration allows you to independently trigger, latch, or hold open two separate entry points (such as automated vehicle driveway gates and a pedestrian side gate) via the app or keypad.

• Proactive Security Radar & Motion Tracking: Intelligent built-in motion sensors monitor your entry perimeter around the clock. Receive instant mobile push alerts with captured video logs whenever motion is detected.

• Smart Visitor Voicemail Messaging: Record up to three unique voicemail greetings. Program the intercom to automatically play your preferred audio recording and capture visitor video messages if a call goes unanswered.

Commercial Cloud Portal & App Management

Take absolute command of your property’s access from anywhere. Via the intuitive Opyn App and the web-based Opyn Cloud Management Portal, installers and site administrators can configure network settings, manage up to 150 keypad codes, schedule automatic gate opening times, review comprehensive event logs with video snapshots, and push firmware updates entirely over the air.

What’s in the Box?

• (1) AES OPYN-PRO-IP-ABK Architectural Flush-Mount Intercom Panel with Keypad

• (1) Professional PoE Splitter / Connector Kit

• (1) 24V DC Power Supply Adaptor (Alternative for non-PoE network setups)

• (1) 8GB Local Micro SD Storage Card (Pre-installed, supports up to 128GB)

• (1) Installation Template & Technical Quick Start Guide

Technical Specifications

• Connectivity: Hardwired LAN / Ethernet (RJ45 Interface)

• Power Supply: 48V PoE (802.3af) or 24V DC 2A Local Input

• Video Resolution: Full HD 1080p High Definition

• Night Vision: High-Intensity Infrared (IR) LEDs with Intelligent Light Sensor

• Relays: 2 x Independent Form C Relays (N/O & N/C)

• Relay Contact Rating: 3A, 30V DC / 250V AC Max

• Weatherproof Protection: IP54 Robust Outdoor Rating

• Local Storage: 8GB Micro SD Card Included (Expandable up to 128GB)

• Operating Temperature: -20°C to +55°C

• Dimensions: 195mm x 98mm x 40mm (H x W x D)

Technical Attributes

• Brand: AES Global

• Model: OPYN-PRO-IP-ABK (Opyn Pro Series)

• Connection Type: Wired IP / LAN (Supports 48V PoE)

• Video Quality: 1080p Full HD Video

• Material: Premium Marine-Grade Black Powder-Coated Steel (Architectural Flush Face)

• Number of Buttons: 1 (Single Call Button)

• Access Control: Backlit Metal Keypad, QR Code Scanning, & Smart App Control

• Keypad Code Capacity: 150 Custom Codes

• Relays: 2 (Dual Relay control for multiple entry barriers)

• Power Requirement: 48V PoE or 24V DC (Power supply adapter included)

• Storage: Local Micro SD Card up to 128GB (8GB Card Included)

• Smart Home Links: Amazon Alexa / Google Assistant
