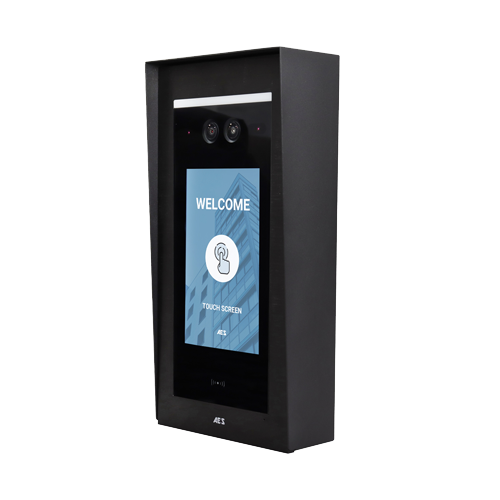

AES Global MULTI-OPYN-IP-IB | Opyn-Multi IP Touchscreen Multi-Apartment Intercom (Imperial Black)

Description

The AES MULTI-OPYN-IP-IB represents a major technological leap for multi-dwelling door entry. Built on an advanced Android 12 platform, this premium multi-apartment IP video intercom features a vibrant 7-inch IPS LCD touchscreen display designed specifically for apartments, flats, commercial offices, and busy business parks. Housed in a surface-mounted, hooded Imperial Black casing, the system connects via a hardwired LAN cable supporting Power over Ethernet (PoE) to offer flawless, high-speed multi-tenant management without any traditional data wiring to individual flats.

When visitors arrive, they can use the intuitive touchscreen directory to easily browse resident names or type a direct room number. The system then instantly streams live HD video and crisp two-way audio to the Opyn App on the resident’s smartphone or an internal Opyn Monitor touchscreen station. Residents can effortlessly screen visitors and activate entry from absolutely anywhere in the world.

Key Features & Benefits

• High-Capacity Multi-Tenant Solution: Engineered to handle massive multi-user locations with a staggering capacity of up to 10,000 unique keypad codes, 10,000 proximity tags, 10,000 face profiles, and 10,000 QR codes.

• Biometric Facial Recognition Unlocking: Equipped with cutting-edge facial scanning technology for lightning-fast, touchless secure access for up to 10,000 registered staff or residents.

• 7-Inch Interactive IPS Touchscreen: Features a crystal-clear, high-resolution (600×1024) display. Supports up to 3 custom alternating screensavers that rotate every 30 seconds—ideal for community announcements, business contact info, or advertising.

• Timed Smart QR Entry: Generate distinct entry QR codes via the app for contractors, guests, or deliveries. Set precise expiry dates, restricted access windows, or total usage limits.

• Dual-Relay Gate/Door Control: Features 2 independent relays (N/O and N/C, 3A max) to control multiple access points, such as an automatic car park barrier and a secure pedestrian lobby door.

• Comprehensive Perimeter Security: Includes integrated motion detection alerts, a physical tamper alarm, an infrared night-vision camera with automatic IR-cut filtering, and seamless compatibility for IP CCTV camera integration.

• Site Notices & Elevator Linkage: Administrative features allow site managers to push scheduled, site-wide text notifications directly to all tenant apps. The system also includes advanced integration options for elevator linkage control.

Multi-Site Cloud Management Portal

The system is built for elite, remote administration. Using the robust Opyn Cloud Management Portal, installers and building managers can securely assign users to buildings, adjust permissions, enroll facial profiles, manage entry credentials, and view cloud-synced activity logs from a web browser without ever stepping foot on-site. (Note: App features and cloud storage are managed via tiered per-apartment licensing packages on the portal).

What’s in the Box?

• (1) AES Opyn-Multi IP Surface-Mount Intercom Unit (Imperial Black Hooded)

• (1) 12-15V DC Power Supply (System also supports 48V PoE)

• (1) Component & Mounting Kit

• (1) Digital Quick Start Installation Guide

Technical Specifications

• Operating System: Android 12

• Connectivity: Ethernet (RJ45) / LAN Cable Required

• Power Requirement: 48V PoE (802.3af) or 12-15V DC

• Camera: 2 Megapixel HD Camera with Infrared & White LED Assist

• Proximity Frequency: 13.56MHz (MIFARE & NFC)

• Access Control Protocols: Wiegand 26 & 34 supported

• Relay Rating: 3A, 30V DC / 250V AC Max

• Weatherproof & Impact Rating: IP65 / IK07 Rugged Rating

• Operating Temperature: Ultra-tough -40°C to +65°C range

• Dimensions: 320mm x 160mm x 74mm (H x W x D)

Technical Attributes

• Brand: AES Global

• Model: MULTI-OPYN-IP-IB (Opyn-Multi Series)

• Connection Type: Wired IP / LAN (Supports 48V PoE)

• Capacity: Multi-Apartment (Up to 10,000 Users)

• Material: Black Powder-Coated Aluminium Housing (Imperial Hooded)

• Interface: 7-Inch IPS LCD Touchscreen (600×1024)

• Access Credentials: Facial Recognition, Keypad, Prox (MIFARE/NFC), and QR Code

• Relays: 2 (Dual Relay control for gates/doors)

• Power Requirement: 48V PoE or 12-15V DC (Power supply included)

• Weatherproof Rating: IP65 Outdoor Rated

• App Integration: AES Opyn App / Opyn Cloud Management Portal
