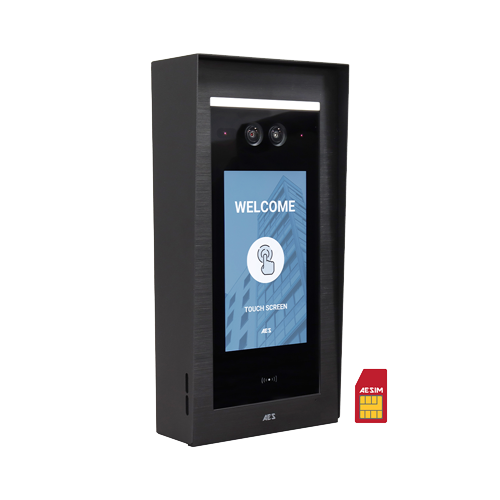

AES Global MULTI-OPYN-4G-IB | Opyn-Multi 4G Touchscreen Multi-Apartment Intercom (Imperial Black)

Description

The AES MULTI-OPYN-4G-IB brings elite, cellular-powered door entry technology to multi-dwelling buildings and gated communities. Built on a high-performance Android 12 foundation, this premium multi-apartment video intercom features an interactive 7-inch IPS LCD touchscreen display designed for apartments, flats, joint residential blocks, and commercial business parks. Housed in a surface-mounted, hooded Imperial Black casing, the system operates entirely over a 4G LTE network via a compatible SIM card.

By utilizing cellular mobile technology, it provides installers and property managers with the ultimate wireless advantage: zero data cabling required between the gateway panel and individual flats, drastically lowering initial installation labor, infrastructure destruction, and hardware overhead costs.

When visitors arrive, they use the high-definition touchscreen directory to browse resident listings or input direct flat codes. The system then instantly streams live HD video and crisp two-way audio to the occupant’s smartphone via the Opyn App or an optional internal Opyn Monitor station, allowing residents to securely vet guests and grant entry from anywhere in the world.

Key Features & Benefits

• 4G LTE Cellular Independence: Transmits high-speed video data globally over mobile networks, eliminating the need for hardwired internet lines, local Wi-Fi range extenders, or building-wide data cabling.

• Massive Multi-Tenant Scalability: Heavy-duty architecture engineered to handle large-scale sites with a capacity of up to 10,000 unique keypad codes, 10,000 proximity tags/fobs, 10,000 biometric facial profiles, and 10,000 temporary QR codes.

• Biometric Facial Recognition Entry: Fast, completely touchless entry option for up to 10,000 registered tenants, staff members, or residents using high-precision facial scanning.

• 7-Inch Interactive IPS Touch Screen: Crystal-clear, high-contrast display (600×1024 resolution) for effortless tenant navigation. Supports up to 3 custom rotating screensavers—perfect for display messaging, site regulations, or commercial advertising.

• Smart QR Code Access Control: Generate dedicated entry QR codes via the app for delivery drivers, couriers, or visiting contractors. Set strict expiry schedules, single-use limits, or restricted access hours.

• Dual-Relay Control System: Equipped with 2 completely independent relays (N/O and N/C, 3A max) to control multiple entrances simultaneously, such as a main vehicle sliding gate and a separate pedestrian intercom gate.

• Proactive Security Monitoring: Built-in physical tamper protection alarm, real-time motion detection push alerts, and an infrared night-vision camera with an automated IR-cut filter ensure 24/7 security logging.

Cloud Management Portal for Property Managers

System administration is fully centralized. Using the advanced Opyn Cloud Management Portal, installers and building managers can log in remotely via any web browser to instantly add or remove tenants, adjust access schedules, view automated activity logs, modify screensavers, and update security credentials across multiple sites without performing expensive on-site service calls. (Note: App features and cloud log storage are managed via tiered per-apartment licensing packages on the portal).

What’s in the Box?

• (1) AES Opyn-Multi 4G Surface-Mount Intercom Unit (Imperial Black Hooded)

• (1) High-Gain 4G External Modem/Antenna Assembly

• (1) 24V DC Power Supply Adaptor

• (1) SIM Card Options Kit

• (1) Installation Component & Quick Start Guide

Technical Specifications

• Operating System: Android 12

• Connectivity: 4G LTE Cellular Mobile Network (SIM Card required)

• Screen Properties: 7-Inch IPS LCD Touchscreen (600 x 1024 Resolution)

• Camera Sensor: 2 Megapixel HD Camera with IR Night-Vision & White LED Strip

• Access Control Capacities: 10,000 Faces, 10,000 Keypad Codes, 10,000 Prox Tags, 10,000 QR Codes

• Relay Output Rating: Dual Relays (3A, 30V DC / 250V AC Max)

• Proximity Frequency: 13.56MHz (MIFARE and NFC)

• Hardware Protocols: Wiegand 26 and 34 supported

• Weatherproof Rating: IP65 High-Durability Rating

• Dimensions: 320mm x 160mm x 75mm (H x W x D)

Technical Attributes

• Brand: AES Global

• Model: MULTI-OPYN-4G-IB (Opyn-Multi 4G Series)

• Connection Type: 4G LTE GSM / Cellular Wireless

• Capacity: Multi-Apartment / Commercial (Up to 10,000 Users)

• Material: Black Powder-Coated Aluminium Housing (Imperial Hooded)

• Interface: 7-Inch IPS LCD Touchscreen

• Access Credentials: Facial Recognition, Keypad Code, Prox Tag (MIFARE/NFC), and QR Code

• Relays: 2 (Dual Relay control for separate gates/doors)

• Power Requirement: 24V DC (Power supply included)

• Weatherproof Rating: IP65 Outdoor Rated

• App Integration: AES Opyn App / Opyn Cloud Management Portal
