Original price was: £1,472.50.£957.12Current price is: £957.12. + VAT

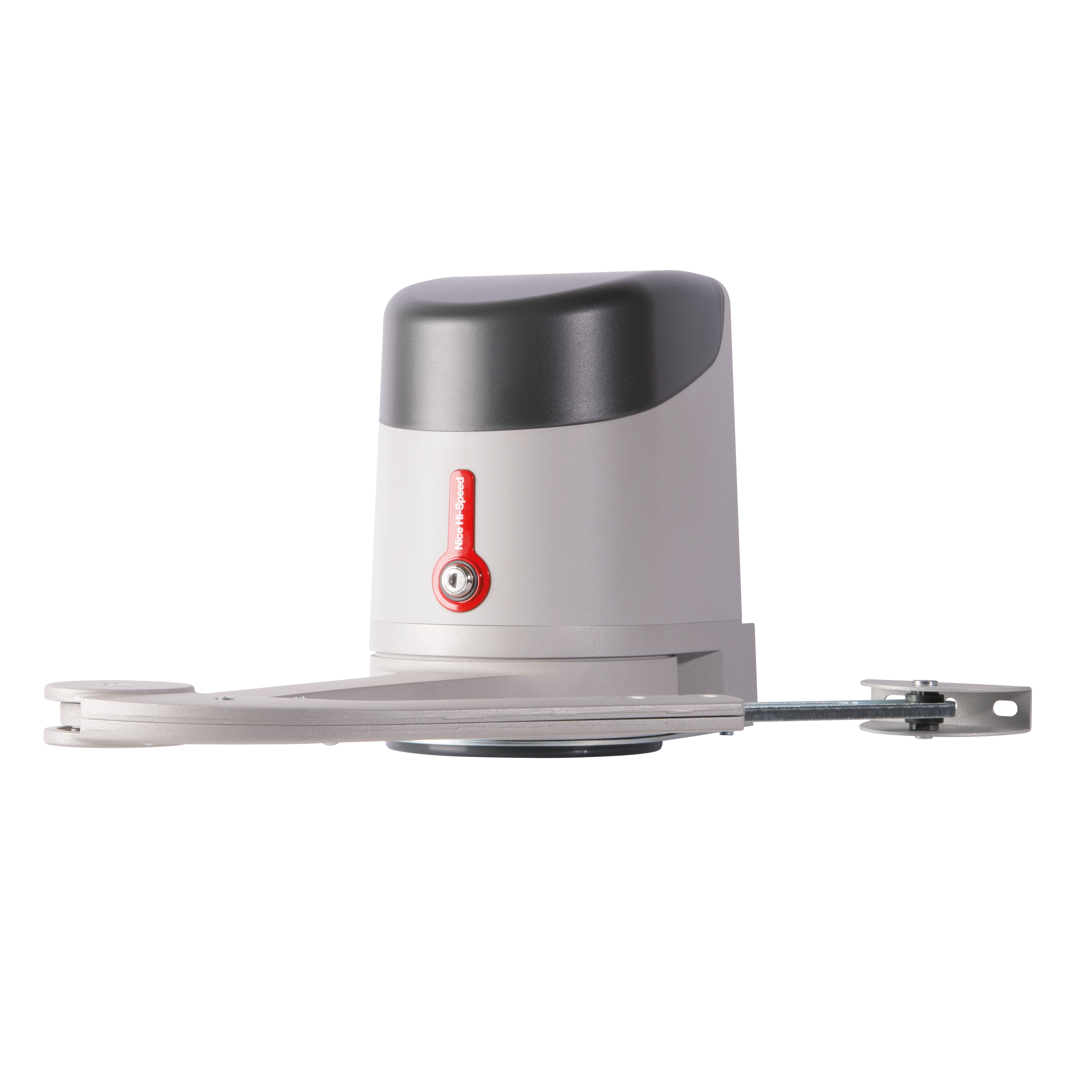

Non-reversible, 24 VDC, fast, with magnetic encoder, complete with articulated arm and integrated control unit
For fast operation of swing gates with leaves up to 3 m or 270 kg Ideal for residential applications, including with large posts.
Electromechanical gearmotor with articulated arm, surface mounted, 24 VDC, with magnetic encoder.
Ideal for intensive use and fast manoeuvres: 90° opening in about 10* seconds.
Powerful and reliable: thanks to the 500 Nm torque and encoder technology, for millimetric accuracy and reliability.
Safe movement: double technology obstacle detection.
Sturdy: thanks to the polyester painted aluminium body; more weather-resistant.
Two non-reversible, 24 VDC versions with opening and closing limit switches: with integrated control unit (HK7024) or without control unit (HK7224).
Quick and practical installation: the length of the articulated arm can be adjusted for maximum flexibility.
Simple and precise limit switch adjustment: mechanical stops and micrometric adjustment screws.
No blackouts: operation in event of power failure with the optional batteries (PS124) housed in the motor.
Integrated control unit (HK7024)
* Considering standard installation, excluding acceleration and deceleration.
