Nice Toona 4024 24V Double Swing Gate Automation Kit with AES OPYN 4G GSM Keypad Intercom, Wireless Detector & BiDi-WiFi
£2,159.63 + VAT
Heavy-duty surface-mounted automation with AES OPYN 4G GSM access and smart WiFi control.
The Nice Toona 4024 24V Double Gate Kit is engineered for swing gates up to 3.0m in length or 500kg in weight per leaf. Built with die-cast aluminum shells and third-generation mechanical components, this complete kit features the AES OPYN 4G GSM keypad intercom for remote audio calls, a wireless vehicle exit detector, and the Nice BiDi-WiFi module for app programming and smart home integration.
-
Gate Leaf Compatibility: Up to 3.0m leaf length / up to 500kg leaf weight.
-
4G Smart Intercom: AES OPYN 4G GSM audio intercom with backlit keypad and mobile app control.
-
Hands-Free Exit: Wireless vehicle loop detector triggers automatic gate opening without driveway trenching.
-
WiFi & App Management: Includes Nice BiDi-WiFi module for installer setup and user app connectivity.
-
Heavy-Duty Reliability: 24V DC continuous duty motor with magnetic encoder and soft start/stop.
Description
Heavy-Duty Surface Automation Meets Advanced 4G GSM & Smart WiFi Control
The Nice Toona 4024 24V Double Swing Gate Automation Kit (TO4024) is a powerful, third-generation surface-mounted linear ram solution built for heavy residential and commercial swing gates up to 3.0 metres per leaf. Featuring die-cast aluminium housing painted with epoxy powder, Toona 4024 is designed to withstand harsh atmospheric conditions while providing smooth, silent, and reliable operation.
Paired with the high-specification AES OPYN 4G GSM keypad intercom system, a wireless vehicle detector, and the Nice BiDi-WiFi interface, this comprehensive kit offers seamless access control, smart remote configuration, and effortless exit automation.
Key Features & Benefits
- Third-Generation Engineering: Internal mechanical parts rearranged for whisper-quiet operation and extreme resistance to mechanical wear.
- 24V DC Encoder Performance: Advanced 24V motor equipped with a magnetic encoder to ensure constant speed, precise obstacle detection, and smooth deceleration.
- AES OPYN 4G GSM Intercom: HD audio calls direct to smartphones or landlines, remote door/gate activation via app or phone call, and an anti-vandal backlit keypad for PIN code access.
- Wireless Vehicle Exit Loop: Automatically detects departing vehicles to open gates without cutting channels into asphalt or block paving.
- Nice BiDi-WiFi Plug-and-Play Module: Simplifies control panel configuration for installers via the MyNice Pro app and enables user control through smart home ecosystems.
- External Antenna Included: Boosts wireless range for optimal GSM cellular connection and WiFi reception in remote gateway locations.

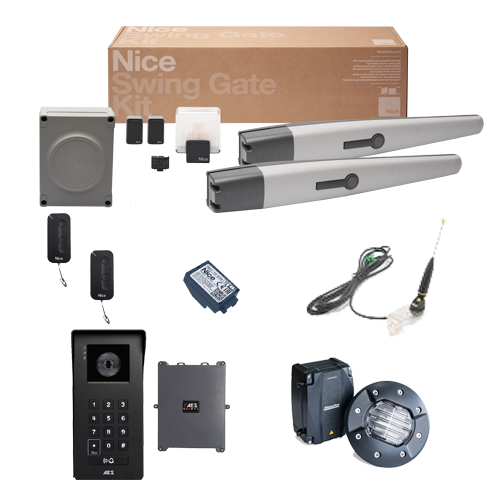

What’s Included in the Bundle?
- 2x Nice Toona TO4024 24V Linear Ram Actuators
- 1x Nice MC824H Control Unit with BlueBUS Technology
- 1x AES OPYN 4G GSM Intercom System with Integrated Keypad
- 1x Wireless Vehicle Loop/Detector System
- 1x Nice BiDi-WiFi Plug-in Interface
- 1x High-Gain External Antenna
- 1x Pair of Nice Era Medium Safety Photocells (EPMB / BlueBUS)
- 2x Nice MyGo4 Rolling Code Remote Transmitters
- 1x OXI Plug-in Radio Receiver
- Mounting Brackets & Emergency Release Keys
Technical Specifications
| Property | Specification |
|---|---|
| Motor Voltage | 24V DC (with Encoder) |
| Installation Type | Surface Mounted / Above Ground Linear Ram |
| Max Leaf Length | 3.0 metres per leaf |
| Max Leaf Weight | 500 kg (at 2.0m) / 300 kg (at 3.0m) |
| Duty Cycle | 95 Cycles / Hour (Intensive Duty) |
| Protection Rating | IP44 Weatherproof Casing |
| Intercom System | AES OPYN 4G GSM Audio Intercom with Keypad |
| Smart Connectivity | Nice BiDi-WiFi / BlueBUS / Opera Ecosystem |
