Nice Era Photocells L

Description

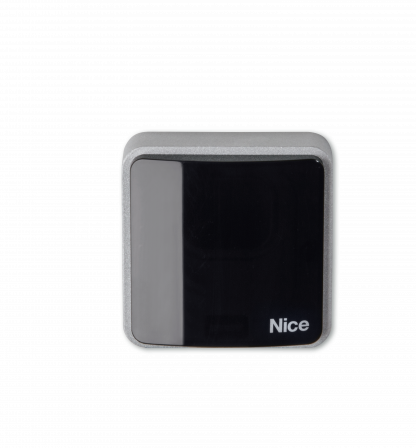

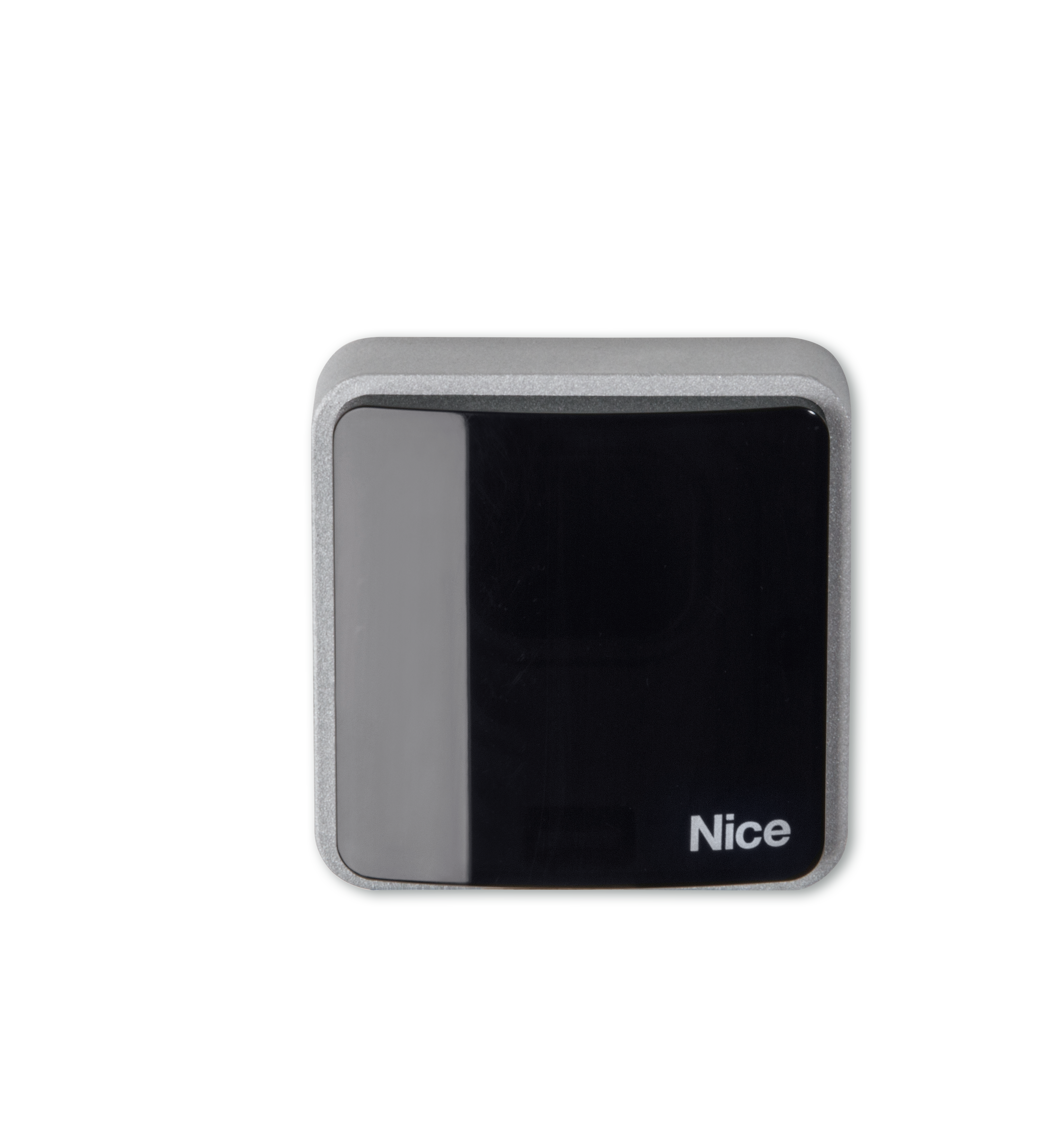

Era Photocell L, pair of surface-mounted photocells Large

Easy and versatile: EPLIO recessed versions are compatible with the most popular standards on the market to replace old photocells or cover unwanted existing installations without the need for any additional adapter.

Safe: type D device in accordance with EN12453 able to detect obstacles in the optical axis between the transmitter (TX) and receiver (RX). Using the phototest function, it is possible to achieve fault safety category 2 according to EN 954-1. EPL, EPLO and EPLIO models provide 2 range levels. An anti-glare circuit eliminates possible interference from sunlight. The adjustable versions allow up to 30° compensation for centring differences.

Inconspicuous: ultra-sturdy polycarbonate body, protrudes for a minimum of 9 mm from the wall in the recessed version.

Convenient: EKA03 bowl adapter for convenient recessed mounting.

Nice BlueBUS technology: the versions with Nice BlueBUS system allow easy connection to the control unit of all devices with just two wires, simply by connecting them in parallel and selecting the addressing jumpers according to the required function. The system automatically acquires devices connected to the BlueBUS network and allows automatic synchronisation between several pairs of photocells to avoid other interference.

IB interface: allows connection of photocells with Nice BlueBUS technology to control units with inputs for traditional contact.
