Nice SPY650HSBDKCE

Description

Gearmotor 650 N x1

SPYBOXBHS Control unit with LED courtesy light x1

OXIBD Plug-in bidirectional radio receiver x1

MYGO4 4-channel 433.92 MHz transmitter x1

For sectional doors up to 105 m2 and up-and-over doors (projecting and non-projecting) up to 11.5 m2.

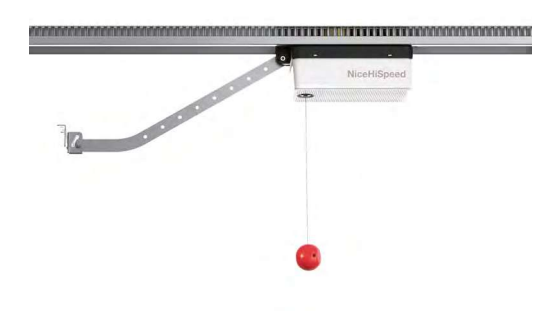

Electromechanical gearmotor, non-reversible, 24 VDC for residential use, rack-on-track drive.

To be combined with SPYRAIL321, SPYRAIL162 and SPYRAIL081 rails.

Guarantees fast manoeuvres: opens the garage door in about 8.5* seconds.

Functional and stylish: the motor is the only component that moves on the track, no chains or other noisy mechanisms. Ideal for any architectural context.

Handy: separate control unit for simpler installation and maintenance. Integrated LED courtesy light. Three practical keys to control the automation.

Quick to install New time-saving solution: wired power supply unit for easy installation in a few simple steps on whichever side of the track you prefer. Limit switches easy to position along the track. No chains or other noisy mechanisms to install.

Ultra-simple, thanks to the BlueBUS system: allows connections with just two wires between the control unit and the pairs of photocells and other accessories using BlueBUS technology.

Easy to programme: Quick Setup procedure for fast, intuitive basic programming. Simplified advanced programming via Pro-View.

ON/OFF release system: pulling the release knob once releases the motor; pulling it a second time blocks the motor again, in any position along the rail.

Economical and environmentally friendly: when connected to the mains, the control unit consumes just 0.5 W in standby mode. Connected to the battery or Solemyo kit, consumption in standby mode drops to 0.1 W.

No blackouts: operation is guaranteed even without mains power, thanks to the optional PS324 buffer battery.

Safe: obstacle detection, monitoring of motor draw during travel, diagnostic messages via flashing light and courtesy light. Adjustable acceleration and deceleration at the start and end of each manoeuvre.
Ready for installation of the latest generation 8,2 kOhm resistive sensitive edges.

Optimised logistics: to facilitate transport and management, the tracks are available in different

sizes: a single 3.2 m section, two tracks each measuring 1.6 m and a 0.8 m extension to add to the other tracks.

* Considering a typical installation with a 2 m high garage door, excluding acceleration and deceleration.
