Original price was: £3,016.41.£2,060.66Current price is: £2,060.66. + VAT

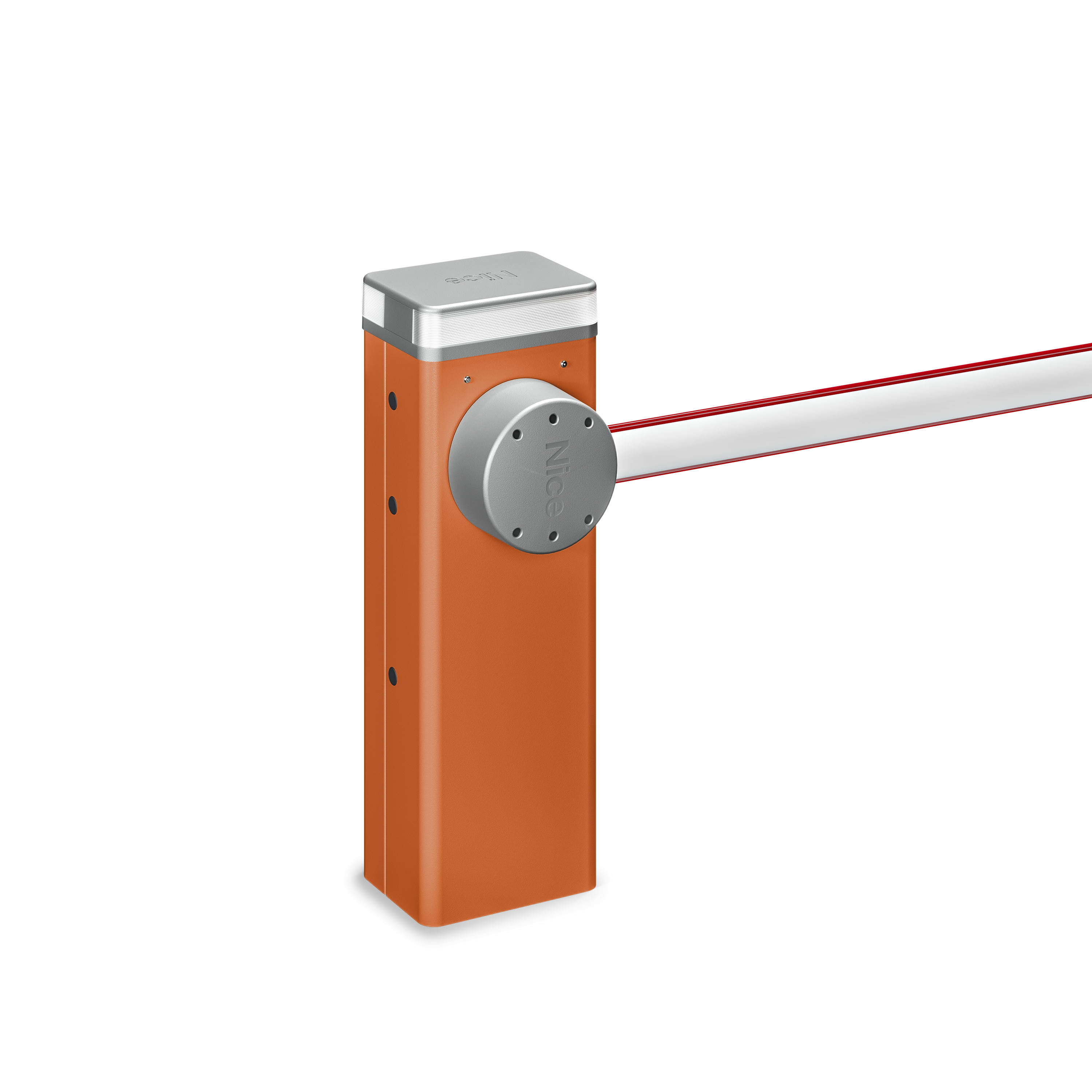

Kit (Barrier, 4m Boom, Catcher Stand)
Gearmotor, 24 VDC, with integrated control unit. Simplified programming: control unit with display and joystick to make setting operating parameters even faster. The control unit has an output to power 24 VDC devices and two inputs to control loop detectors via the LP21 and LP22 accessories.
Modular: practical composition of the bars with the aluminium expansion joint. Smart control of the movement of two opposing automations thanks to the “master/slave” function.
Strength and reliability: sturdy steel structure, new robust balancing springs guaranteed for up to 2,000,000 cycles and elliptical section bar with high resistance to gusts of wind. Optional flashing or traffic light for integrated installation in cover. Movement control with encoder and electromechanical limit switches.
Easier programming and maintenance: separate compartments for the electronics and mechanics protect internal parts from possible hazards. Quick and easy access to the control unit located in the top part of the barrier body. The photocells, completely invisible from the outside, are fixed simply in place in the recesses provided in the barrier body.
More reliability and safety: obstacle detection and monitoring of motor draw throughout automation movement. Automatic fault diagnosis during operation and subsequent indication of type through different combinations of flashes. Provision for connection of latest generation optical and resistive sensitive edges (8.2 KOhm resistance).
Energy saving: when the system is not in use, it switches to stand-by mode, reducing power consumption.
No blackouts: operation in event of power failure with the optional batteries (PS224) housed in the motor.
Side release with metal key: can be installed on either side.
| Colour | Orange, Grey, White |
|---|
